Need to remove or tighten a bottom bracket? One of these will do the trick. Depending on your bike there are a few variations so have a careful read of the information below

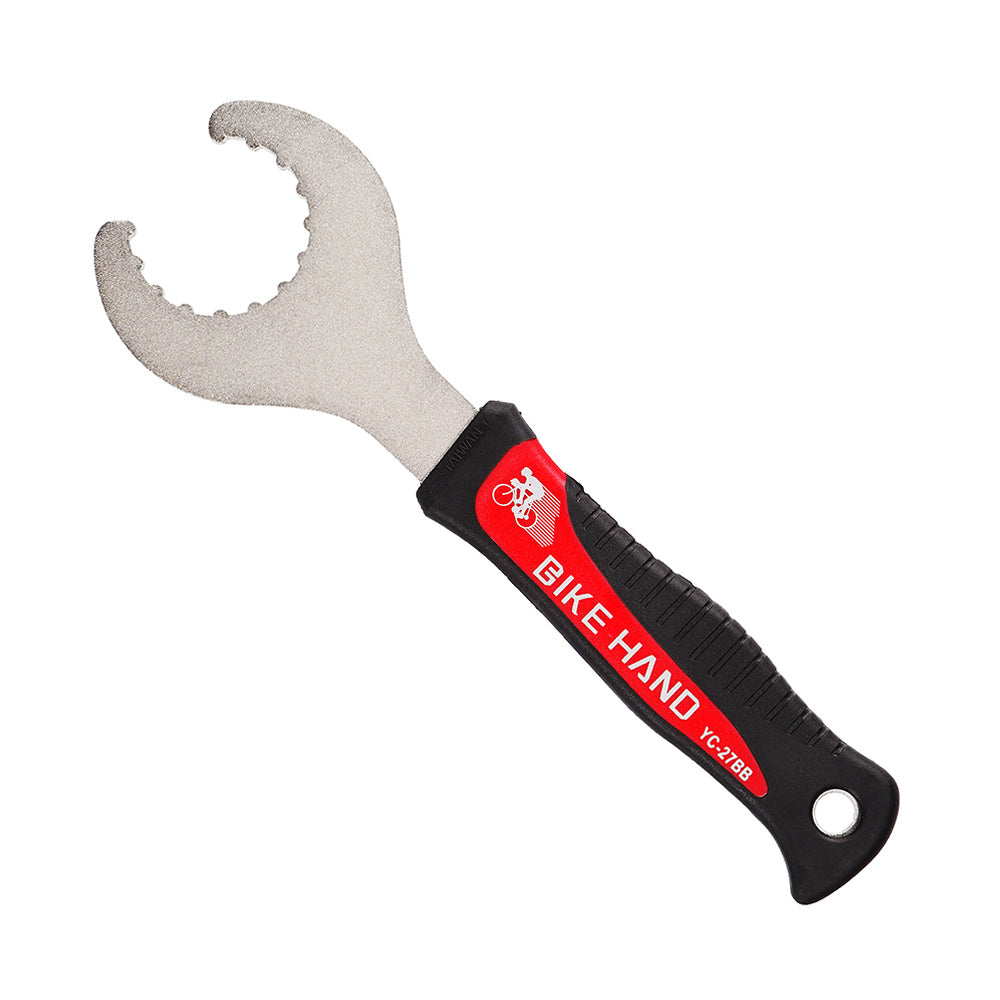

Shimano tool:

Fits 16-notch tool fittings with a major diameter (outside of notches) of 44–45mm including:

• Nearly all Shimano Hollowtech II bottom brackets
• Threaded bottom bracket cups from Campagnolo, Chris King, FSA MegaExo, Hope™, SRAM/Truvativ GXP, Race Face X-type, Surly, Wheels, Fulcrum, and others
• 16-notch disc brake rotor lockrings

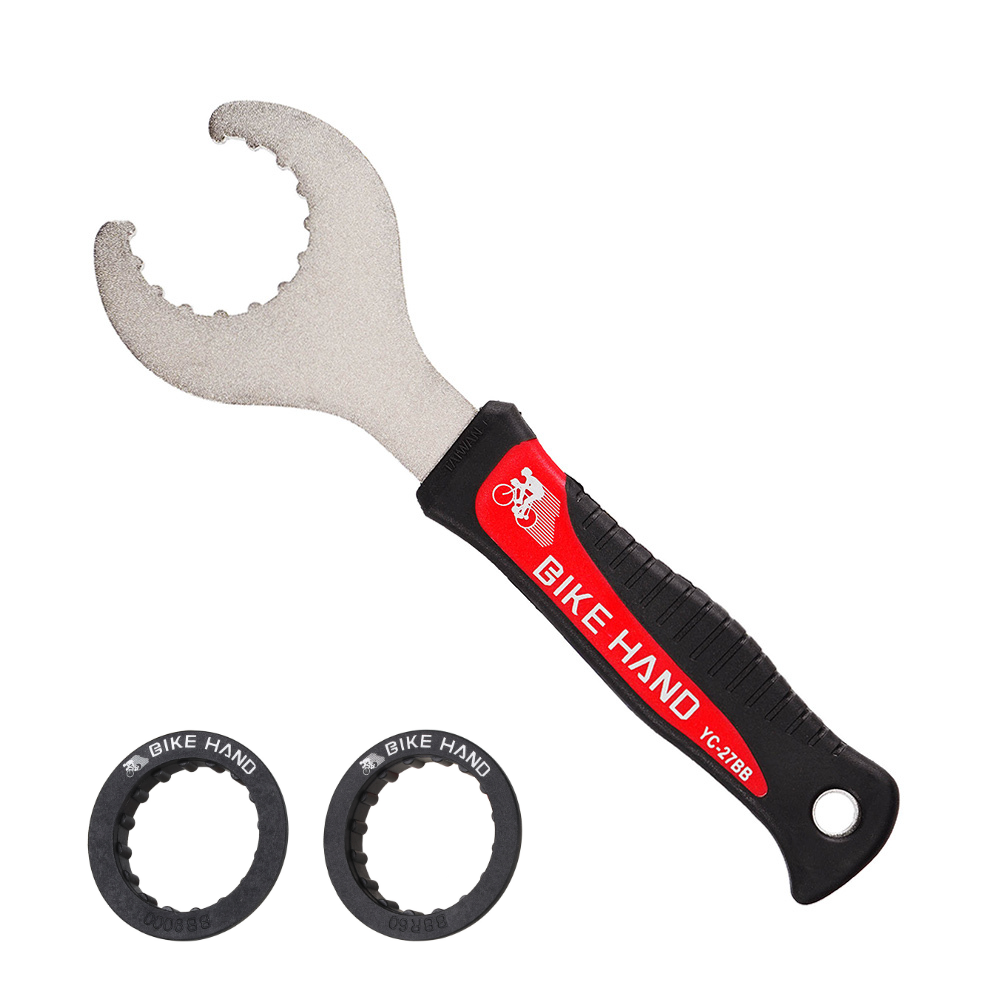

Adaptors:

You might need an adaptor to suit some bottom brackets:

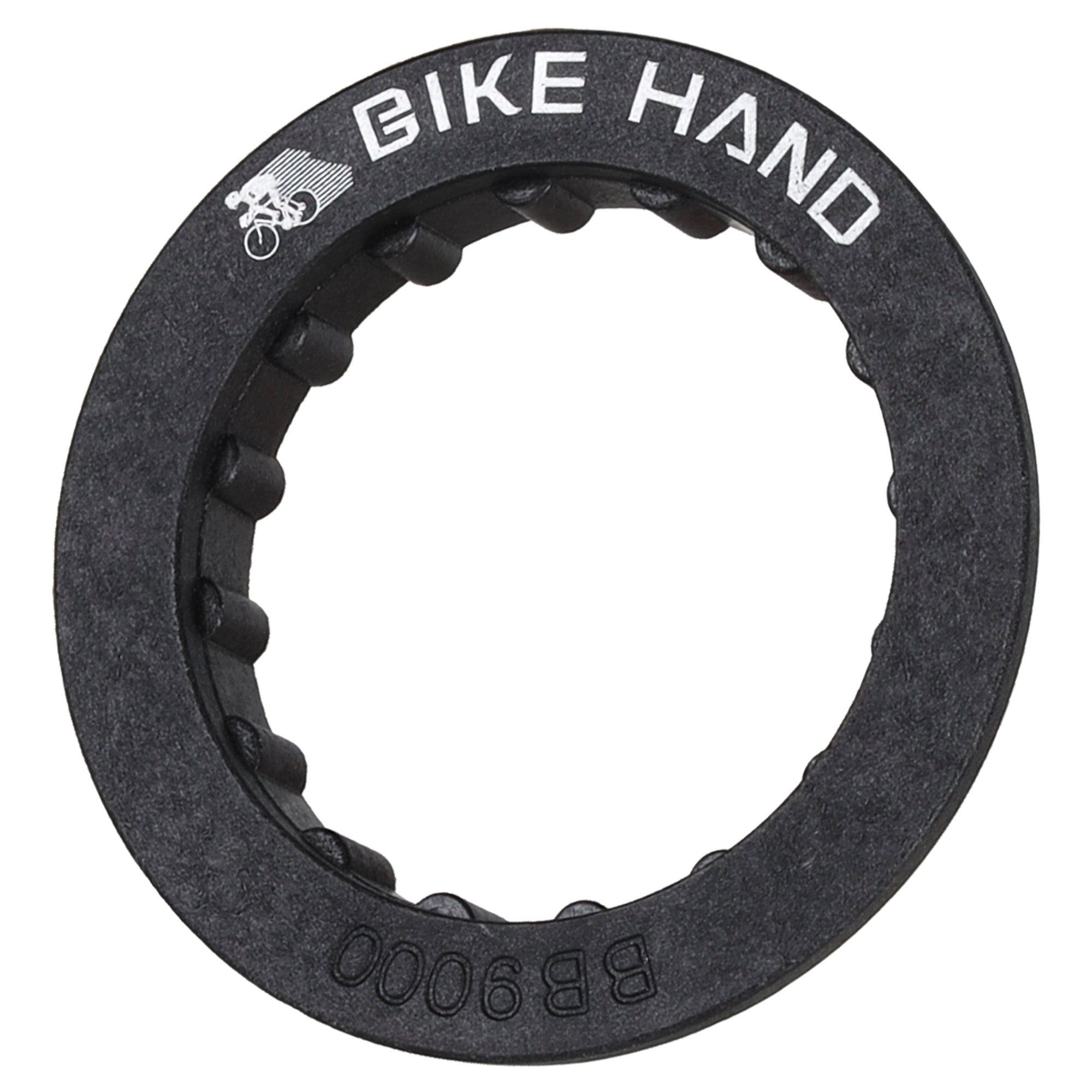

• BB9000 Adaptor:
  If you have a XTR BB93, Dura-Ace BB9000 or Dura-Ace BB9100 you will need the BB9000 adaptor. These bottom brackets have a major (outer) diameter of 39-40mm.

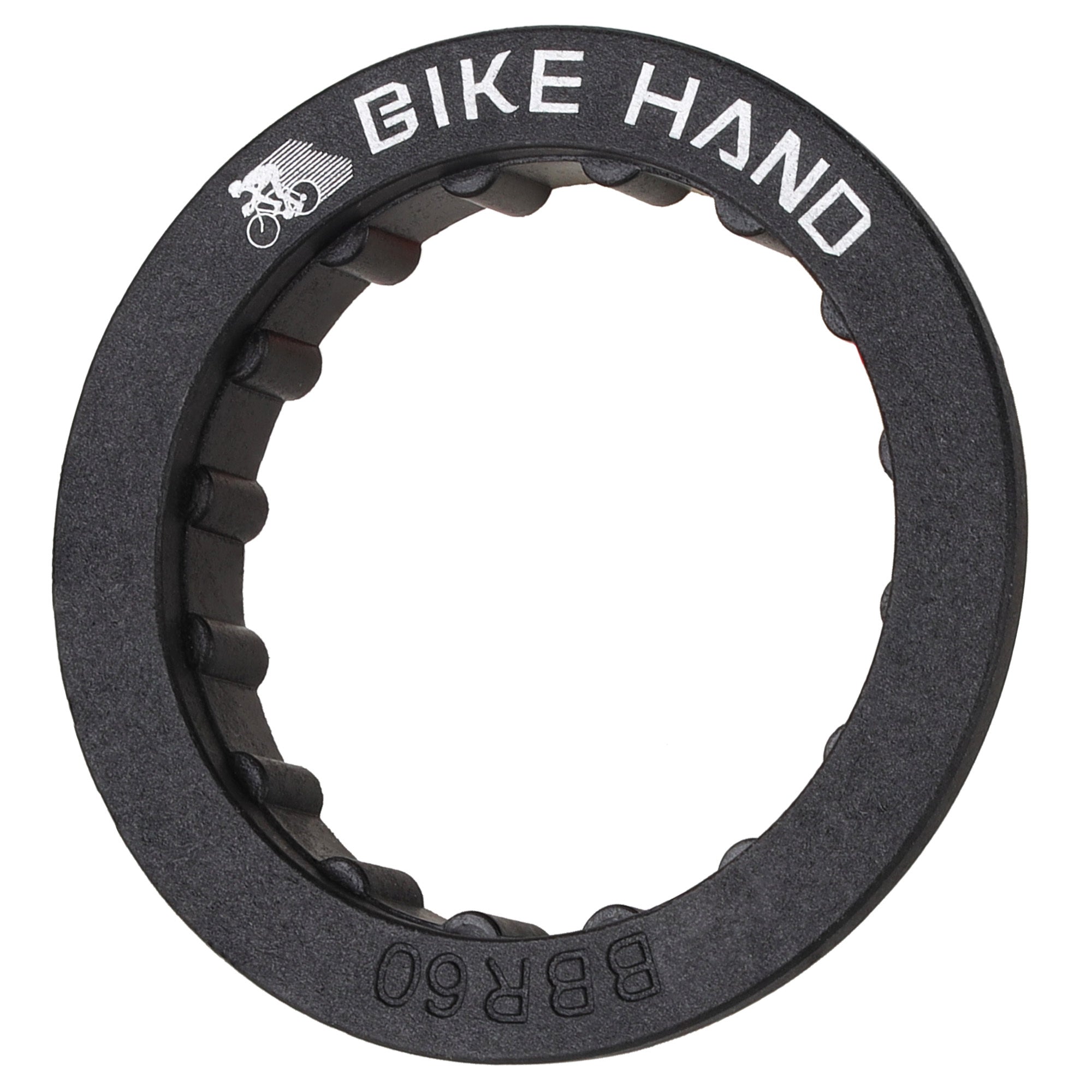

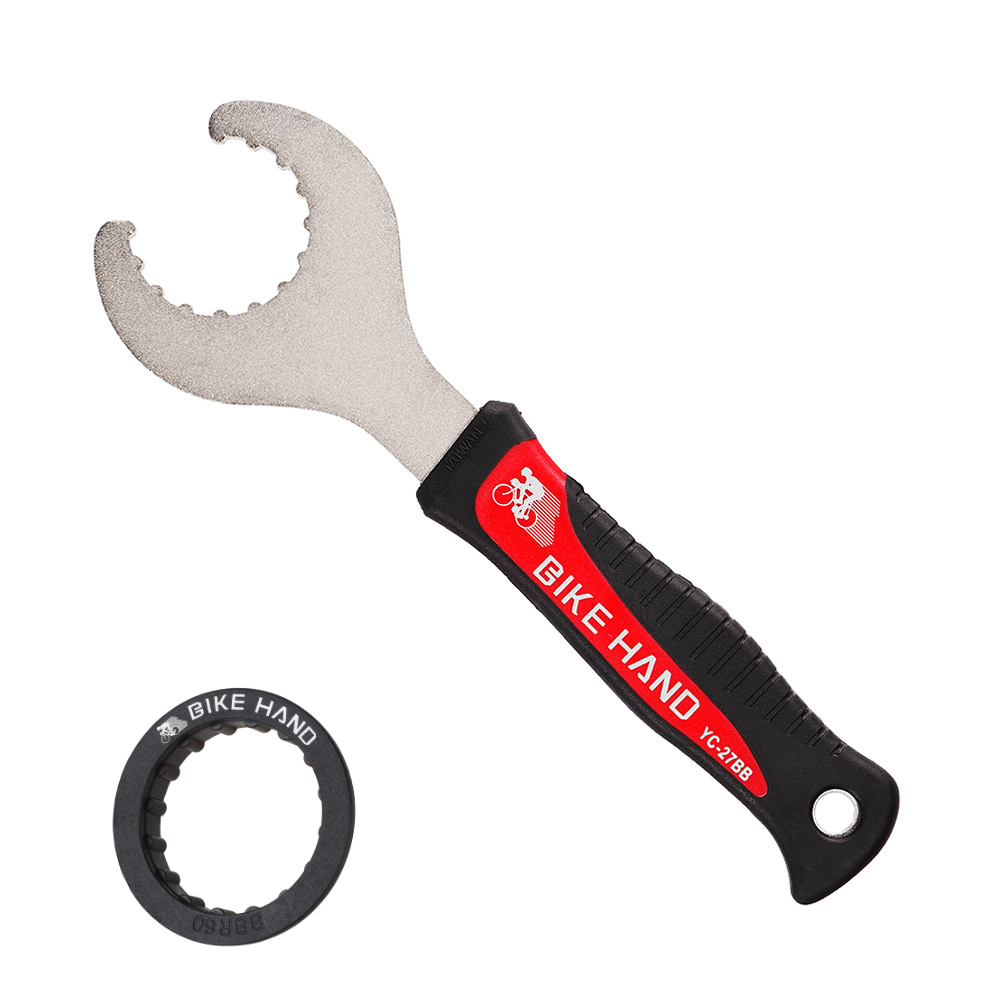

• BBR60 Adaptor:
  If you have an Ultegra BBR60 or Deore XT MT800 bottom bracket get the BB9R60 adaptor. These bottom brackets have a major (outer) diameter of 41-42mm.

With these Shimano bottom brackets you will find the part number written on the outer shell.
If you only need an adaptor, click here.

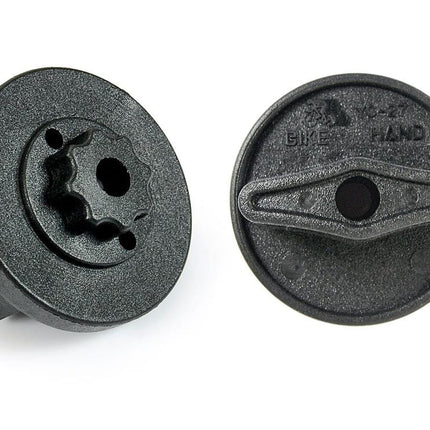

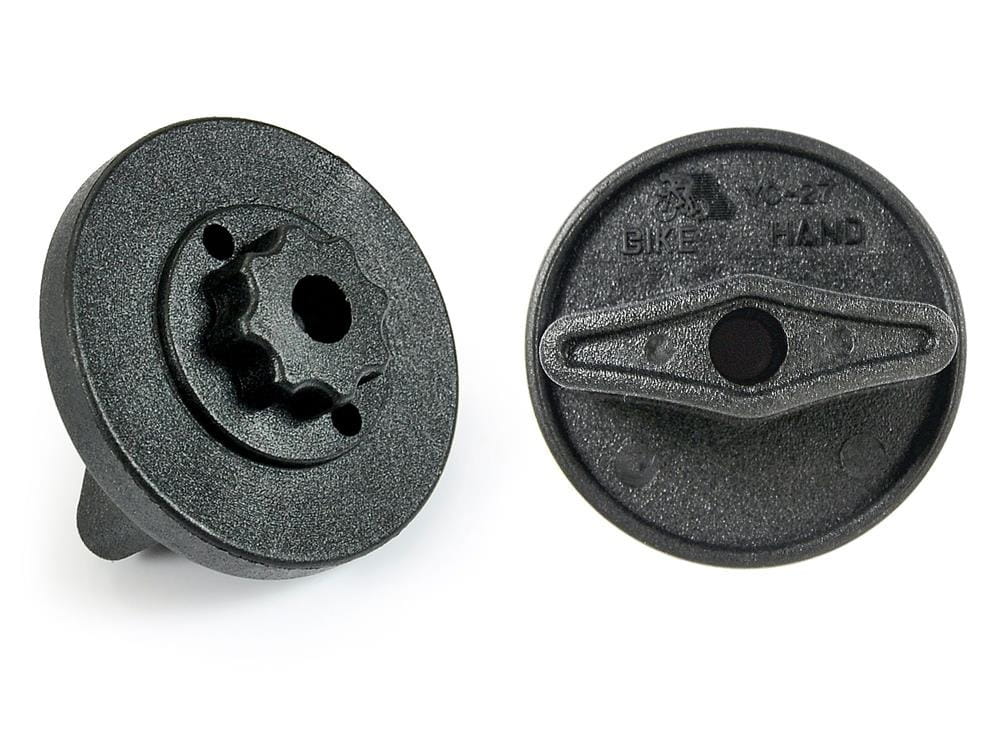

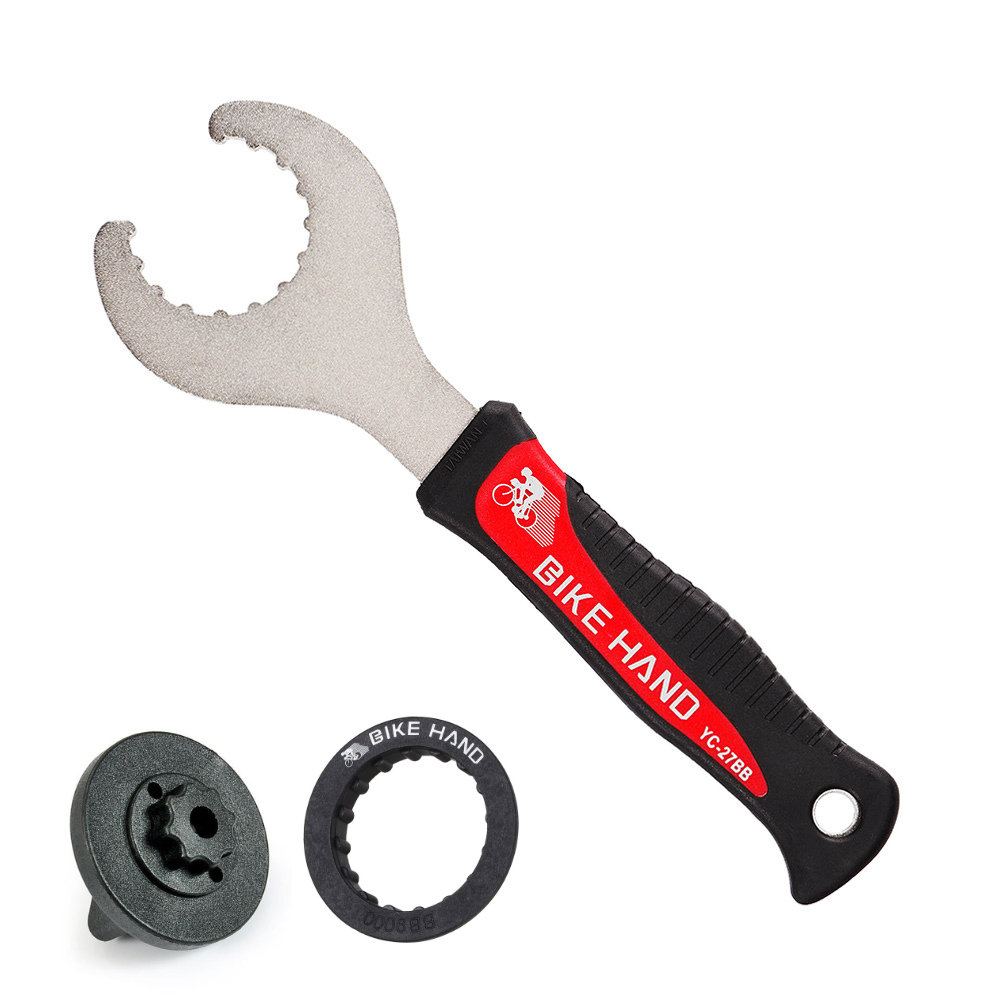

Crank Preload tool:

If you need one of these bottom bracket wrenches, there is a good chance you have Shimano Hollowtech II cranks. In this case you’ll want a shimano Crank Preload tool too. This is to tighten and loosen the funny looking plastic cap on the end of your left side crank.
If you only need an adaptor, click here.

Centerlock rotors:

This is also the primary tool to for removing/installing centerlock rotors. Double check that your adapters use this interface before purchasing though, they also come in a cassette tool format.
