DMR V8 Bushings

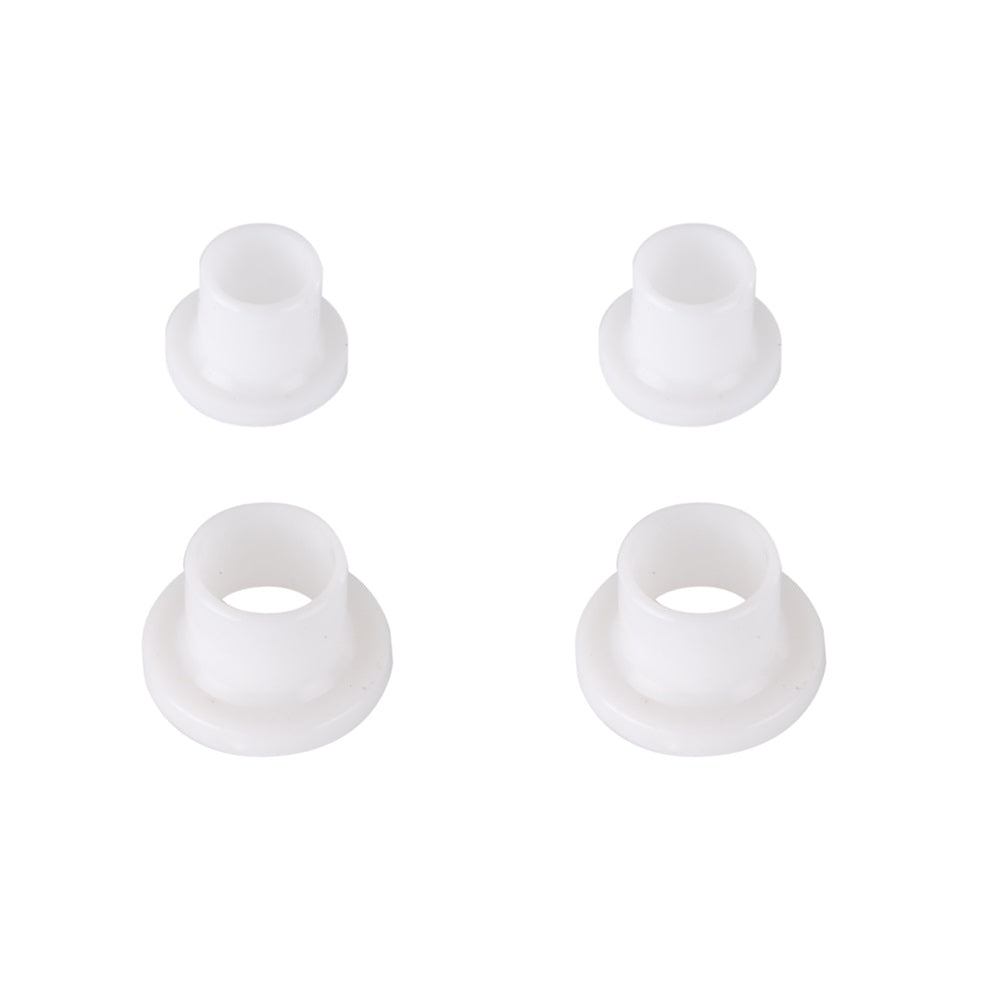

DMR V8 Bushings Grey End Caps (current production)

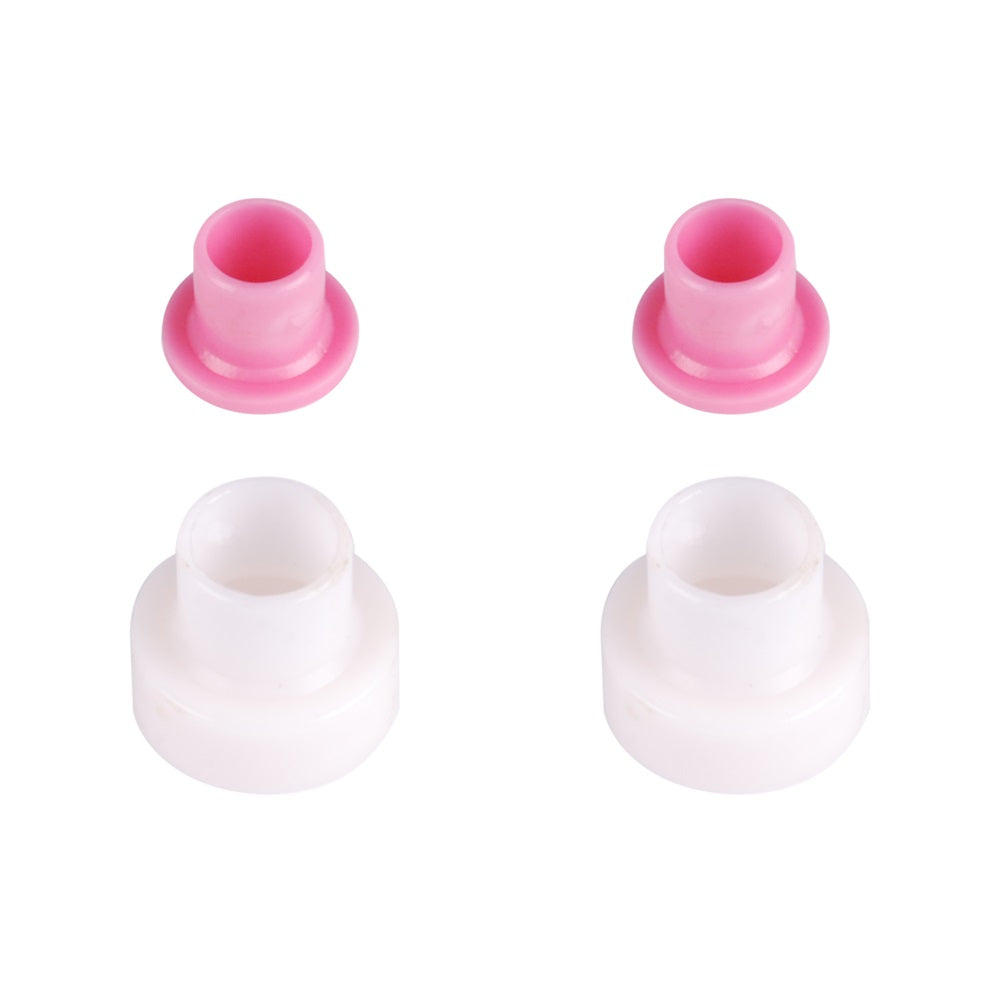

DMR V8 Bushings Black End Caps (old production)
  • Save $0
New bushings for DMR V8 Pedals. There is two types:

For grey end cap pedals:
2x Top Hat Bushing (white): 10mm Ø ID (Internal Diameter) 19mm Ø OD (Outer Diameter) 11.5mm Width
2x Top Hat Bushing (pink): 7mm Ø ID (Internal Diameter) 14mm Ø OD (Outer Diameter) 10mm Width

For Black end cap pedals:
2x Top Hat Bushing (white): 10mm Ø ID (Internal Diameter) 19mm Ø OD (Outer Diameter) 16mm Width
2x Top Hat Bushing (pink): 7mm Ø ID (Internal Diameter) 14mm Ø OD (Outer Diameter) 10mm Width

Service Guide:
https://www.dmrbikes.com/files/technical/V8v2ServiceGuide.pdf
​
