Genuine Fox volume spacers can be hard to find and seem rather expensive for a simple piece of plastic. With this product we have killed two birds with one stone.

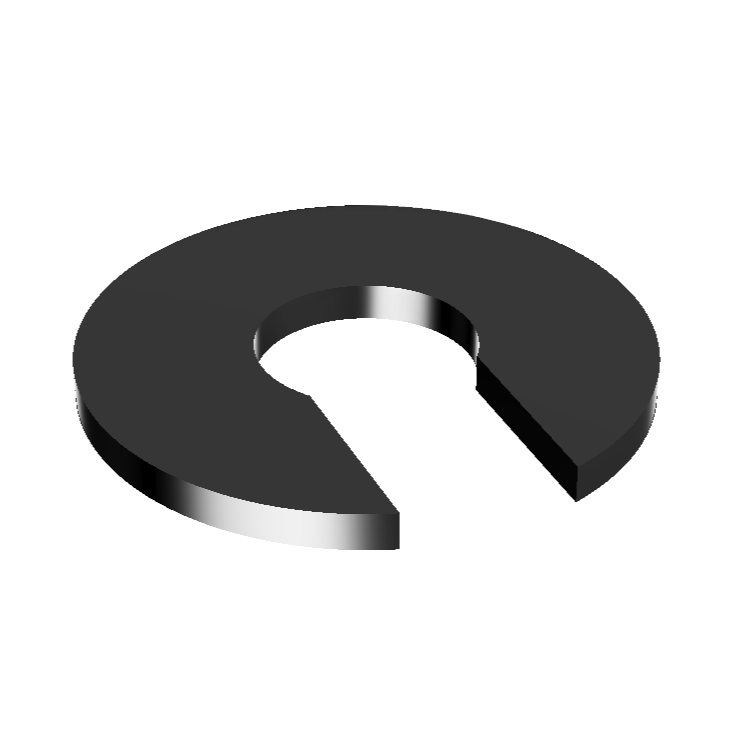

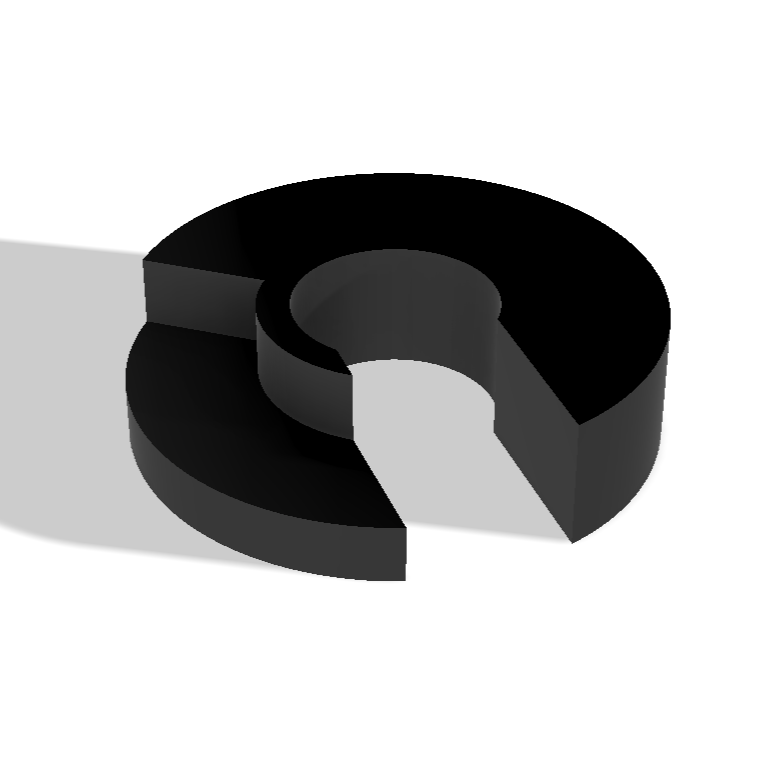

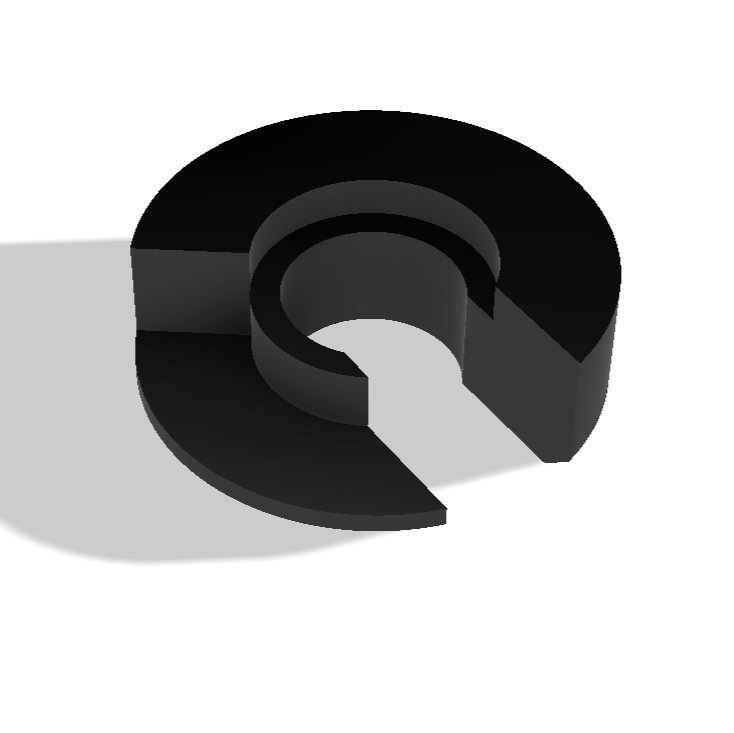

These spacers fit model year 2022+ Fox Float X rear shocks. Simply choose the size you need, or get a few to experiment with different levels of bottom out resistance.

Install these spacers with the text facing outwards (so you can read it).

Spacers can be installed individually or as follows:

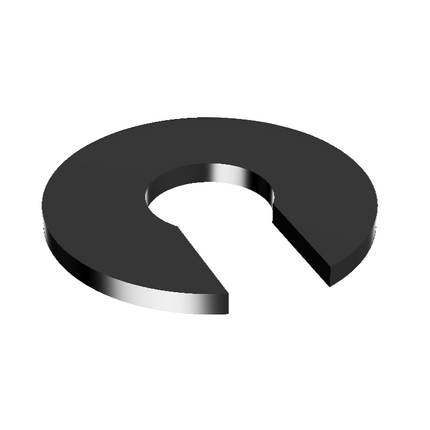

• Up to three 0.2 cubic inch spacers can be fitted

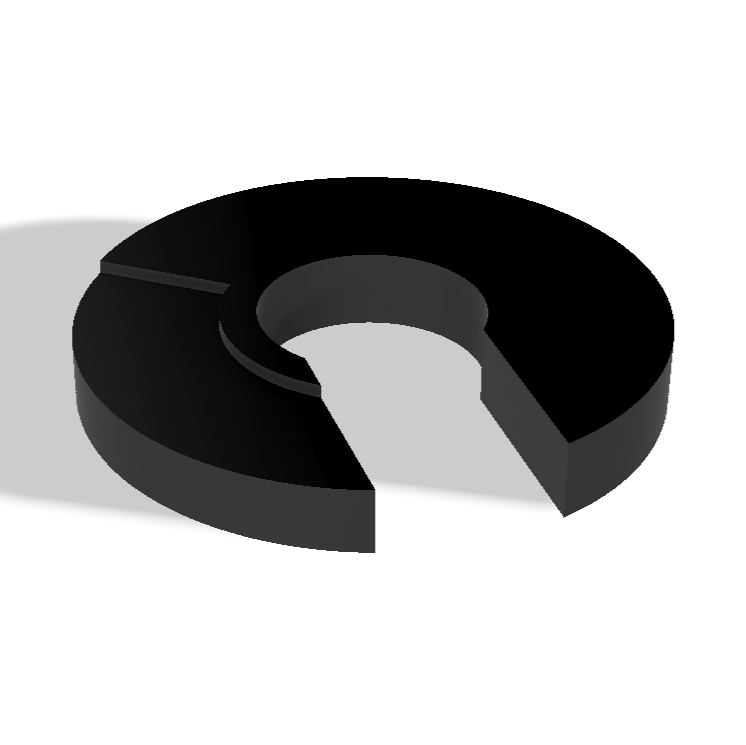

• One 0.4 cubic inch spacer and one 0.2 cubic inch spacer can be installed together. The 0.4 cubic inch spacer must be installed first.

Installation:

1. Let all the air out of the shock (make a note of your pressure),

2. Unscrew the air can and either pull it down slightly, or completely remove it from the shock,

3. Clip the volume spacer(s) onto the thick shaft at the top of the shaft. Note how the shaft is not a perfect circle - the straight edges align with the straight edges of the spacer.



4. Ensure all spacer are securely clipped in place

5. Screw the air can back onto the shock and reinflate.

6. When removing volume spacers, if you need to use a tool to help pop them loose, please do not put anything metal into your shock. Instead use something like a plastic tyre lever so you don’t risk scratching any internal surfaces.
